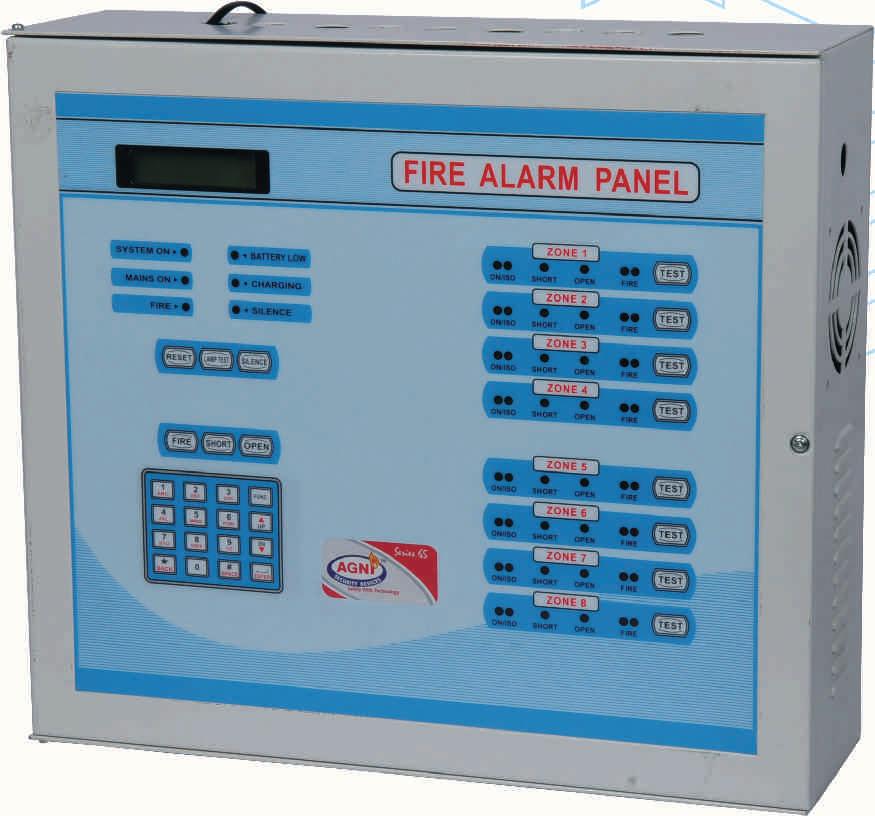

- Fully complies to IS 2189 & tested by ERTL(N)

- Operates on 220V AC,50Hz AC Supply

- Battery backup with inbuilt charger

- Fire/fault status in unambiguous colored LED indications

- 16*2 line dot matrix LCD (20*4 LCD Optional)

- Expandable upto 60 zone

- 128 Events logging facility with real time clock and keypad(optional)

- RS-485 Port (for repeater panel) optional

- Zone wise fire, open, short LED Indications

- Zone wise hooter output

- External s/w to test each zone fire, open, short status manually

- External s/w for reset, Silence, Lamp test

- Zone isolation facility with zone voltage cutoff

- Relay for free contacts65

- Mains on, system on, charger on visual indications

- battery low & common fire indications

- Auto dialer attachable facility

- Enough inside space for SMF battery

- Attachable with all types of fire detectors

- Maximum 25 nos. detectors in each zone

Technical Data :

- Panel Operating Voltage

: AC 220v50Hz ±10% ,DC 24v 1 amp

- Operating Temperature

: 0°C to 50°C

- Operating Humidity

: 95% (non-condensing)

- Hooter Output

: 2A (24v DC)

- EOL

: 4k7 ohm,1per zone

- Weight

:  7.8kg

- Dimension

: H 362mm * W 403mm * D 122mm

- Construction

: 1.8mm CRCA sheet duly powder coated

- Colour

: White

Series

- Hooter output current can be increased as per customer requirement.
